Case 01 / Armoured crew systems · 2024 · Under NDA

What’s loaded.
What was ordered.

CHARGEUR is a load-state system for an armoured vehicle crew. We redesigned the commander, gunner and fleet surfaces so a mismatch becomes impossible to miss—and every person reads the same operational truth.

Design partner Rugged tablet UI Defence
41% faster Type-switch completion in evaluation
0 mismatches Across 24 reruns of the critical scenario
67 components A reusable, operator-first system

The idea in 30 seconds

The machine is hidden. The answer shouldn’t be.

Chargeur helps a tank crew see what ammunition is loaded, whether it matches their request, and how much is left.

  1. 01 / The person

    The commander asks.

    They choose an ammunition type on a tablet. The gunner needs to know the right one is loaded.

  2. 02 / The technology

    A machine loads it.

    An automatic loader works out of sight. Sensors report what is loaded; the crew relies on a screen.

  3. 03 / The design need

    Make the answer clear.

    Chargeur shows “requested” and “loaded” on both crew screens, so a mismatch is clear before anyone acts.

Outside the tank: A supply officer sees what is left across the fleet and who needs more.

Case in one line
A near-miss exposed a state-communication failure—not a hardware failure. The redesign moved the product from “system ready” to a shared, explicit answer: requested type, chambered type, and what the crew should do next. 8 minute read · Product + service design

On a training exercise in Champagne, Victor 4, a three-man crew in their third year on the ALT-3 tank, engaged a simulated target.

The commander requested an armour-piercing round. The amber light confirmed it. The gunner fired a shaped charge instead.

In the debrief, the crew couldn't explain it. The interface had confirmed readiness, and they trusted it.

That incident report reached our team six weeks later. It was the fourth near-miss that year.

The brief called it a refresh. The incident report said otherwise.

A specialist defence agency brought us into a European armoured-vehicle programme after four near-miss reports. The engineering brief asked for a visual refresh of the existing panel.

The evidence pointed somewhere else: hardware state existed, but the interface collapsed “system ready” and “requested round loaded” into the same signal. This was not a styling problem. It was a broken contract between machine and crew.

Our remit expanded from one panel to the shared state model across commander, gunner and resupply.

Map mapping Bengaluru to Paris to Champagne

What the software is, and who is holding it

The software
CHARGEUR manages the ammunition load inside the ALT-3 main battle tank: what is stowed, what is chambered, and what the fire order asked for.
Who uses it
Two people in the turret, a commander and a gunner, on a rugged tablet each. Outside the vehicle, a logistics officer running resupply for a sector of eight.
Why it is not a normal brief
Misreading a round type costs seconds the crew does not have. A flaw here does not show up as a drop in engagement; it shows up as a wrong shot.

A machine you never touch, but have to trust completely

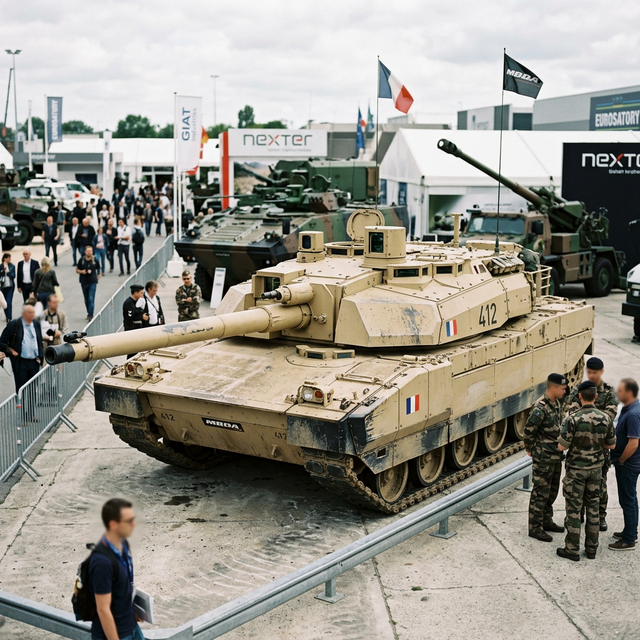

Main Battle Tank in the field

Here's the thing about the ALT-3 autoloader: it's genuinely impressive. A sealed carousel with 30 rounds, OFL (armour-piercing, for punching through plate), OCC (shaped charge, for penetrating fortifications), and OE (high-explosive, for everything else). The commander picks a type, the carousel spins, and in eight seconds there's a round ready to fire.

The crew never touches the ammunition. Not during a mission, not during an engagement. They push a button, they wait, and they trust.

And that is the thing: trust. Three different round types, three different tactical purposes, and the only thing standing between the right call and a wrong shot is a small amber light on a panel designed before most of the crew was born.

That trust is the entire design problem.

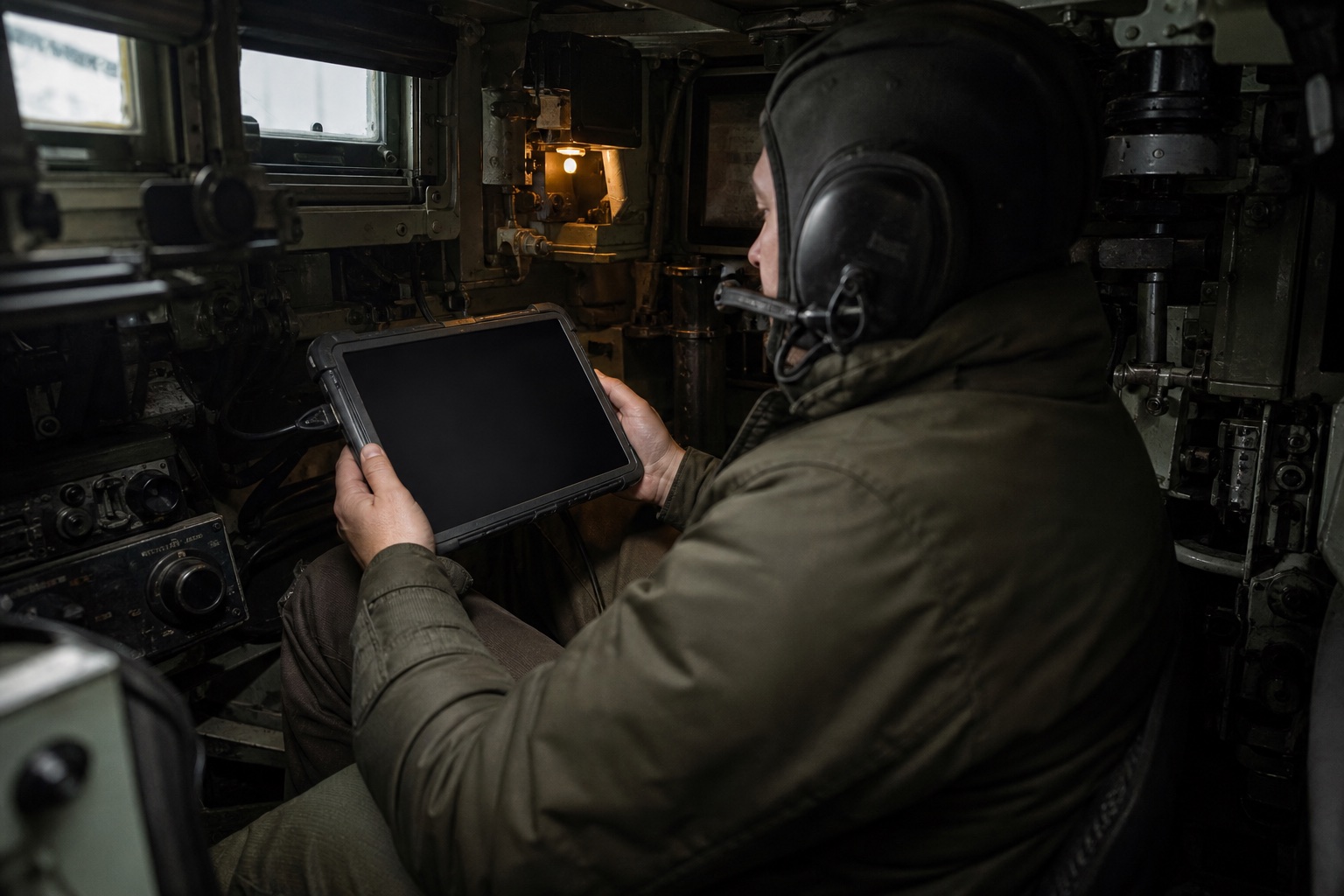

Operator holding a blank rugged tablet inside a cramped armoured vehicle interior

Reconstructed context image · The product had to remain readable in low light, vibration and a workspace where the operator cannot change posture to accommodate the interface.

"They never touch the ammunition. They push a button and trust. That's the whole design problem in one sentence."
to the breech 30 rounds stowed Autoloader carousel Sealed. The crew never sees inside it. OFL Obus flèche · armour-piercing OCC Obus à charge creuse · shaped charge OE Obus explosif · high explosive Three types, one tube, four seconds a cycle. Before this project, the panel said only whether a round was ready, never which one.
Thirty rounds, three types, one breech. The commander picks a type and waits four seconds without seeing anything move.
Autoloader Sensor array Breech position Barrel temperature Hydraulic pressure One tablet Commander Round in the breech Magazine remaining Mismatch, if any Gunner Round in the breech Contacts and range Mismatch, if any same state, both seats
The autoloader already knew what was chambered. The old panel just never passed it on. Both crew members now read the same state from the same source.

A small remote design team, four escorted site visits

Our role
Design partner · discovery to handoff
Duration
4 Quarters (2024)
Team
2 designers · 4 engineers · agency safety lead
Agency
Atelier Numérique Défense

🔒 The clearance problem

Each site visit required a 3-week advance request, approved by both Agency's security officer and the base commander. Four visits over four quarters. Every observation had to count.

🌍 The remote translation problem

For the first three months, the entire project ran over Figma shares and video calls bridging IST and CET. Every design decision had to be documented well enough to survive a handoff none of us would be in the room for.

📱 The hardware constraint

Prototype testing moved from A3 laminated printouts (lo-fi) to a ruggedized Android tablet running a web prototype (mid-fi) to a hardware simulator (final). Each medium introduced fidelity gaps.

4 site visits. 11 interviews. 3 years of incident reports. That's where we started.

What they were trusting was this.

Before CHARGEUR, crews relied on a primitive software console that suffered from critical UX failures:

No text labels
Status codes and glowing blocks. Nothing on the panel spelled out a round type.
No totals
Crews memorised what was left, or kept tally marks on tape.
No verification
Nothing on the panel could confirm the chambered round before firing.

Three ways that failed in the field

Victor 4 asked for an armour-piercing round and got a shaped charge. The amber light still said ready. Nobody in that crew had a way to catch it before the trigger.

The light said ready

"The commander's on the radio and I'm just… hoping." The commander picks the round. The gunner pulls the trigger, with no screen, no status, nothing.

The gunner fires blind

How many are left is a simple question the panel could not answer, so crews guessed and called counts over the intercom. Four incident reports in three years came down to guessing wrong.

And outside the tank? Even less.

The supply officer's job was to keep eight vehicles armed and running. His tool was a shared Excel spreadsheet. Columns for each vehicle. Rows for round counts. Updated by radio, whenever someone remembered to call in.

"6 rounds remaining, est." That one word. Est. Estimate. The supply officer was making life-or-death logistics decisions based on a number that a three-person crew guessed over the radio, mid-mission. Supply Officer, Camp de Mourmelon
Legacy resupply spreadsheet photo

We went to find out how often this happened.

Field visits
4 sessions, Champagne
Interviews
11 participants
Incident logs
22 over 3 years
Usability audit
Military display standards

Visit 2, March 2024, 06:00 briefing

The pre-mission loading sequence took 34 minutes. Two crew members physically handled each round: one to retrieve, one to confirm the type label verbally before handing it to the loader. Every round was announced aloud: "OFL, slot three." "OCC, slot four." A ritual. A verbal design that the software had never matched.

We sat in the corner and counted. Fourteen rounds without incident. On round fifteen, an OE, there was a two-second pause before the verbal confirmation. The crew member had picked up an OCC. He caught it. Set it down. Retrieved the correct round.

That pause was 2 seconds. In the field, under stress, that pause might not happen. That's how close-call errors work: invisible to the person who catches them.

Key findings

Mismatch rate: 4 confirmed mismatches in 22 incidents, 18% of all reported training incidents involved the wrong round type

Blind handoff: In 100% of observed engagements, the gunner had zero visibility into which round type was chambered

Mental count errors: Crew estimates were off by an average of 2.4 rounds when compared to actual counts post-mission

Existing workarounds: Every crew had invented at least one unofficial method, tally marks on tape, verbal call-outs, or a written log

Every workaround was a design that already existed, just not in the software.

The system shows state.

It needs to show truth.

These are different things.

One screen, three answers, zero ambiguity

The commander panel is a single-screen tablet interface that answers three questions at a glance: What's loaded? How much is left? Is the system ready? The top bar shows telemetry (barrel temp, hydraulics, target distance) and autoloader status. The center shows the chambered round type in massive, named text with a material colour for OFL, OCC and OE. A neutral verification state confirms the match without spending warning colour on normal operation. The right column shows three clickable ammo inventory cards. Tap one to request a type switch.

Telemetry Topbar
BRL temp, hydraulics, target distance, always visible.
Type Display
96px text, OFL=blue, OCC=orange, OE=green. Zero ambiguity.
Commander panel, OFL loaded, system nominal. Barrel temp, target distance, ammo counts all visible at a glance.
Match Badge
A labelled, neutral confirmation appears only when requested and chambered types match.
Inventory Bars
Live count per type, fill bar + number. Tap to switch.

And when something doesn't match? The panel doesn't just turn yellow and leave you guessing. It tells you exactly what went wrong, shows both the requested and the chambered type, and gives you two clear options: abort and recycle, or confirm the override. No alarm bells, no noise. Just the truth, and a choice.

Named Alert
Not just a light, crew knows exactly what triggered it.
Actual vs. Expected
Both types shown at once, crew sees exactly what's wrong.
Mismatch state, OCC chambered when OFL was requested. Crew sees both types and must make an explicit choice.
System Alert State
Amber topbar shifts entire UI before finger touches trigger.
Two Explicit Choices
Abort or override, no hidden defaults, no accidental fires.

If Victor 4 had had this screen, they would have stopped. That's all we needed to hear.

The second screen does not create a second truth. The gunner receives the same chambered type and match state from the same source—read-only, always visible, and without a radio call. One state model · two role-specific surfaces

Replacing the spreadsheet with a tactical map

The supply officer needed to see his entire fleet at once, which vehicles are running low, how urgently, and what to send them. So we built Fleet Command: a tactical map with diamond-shaped vehicle markers (neutral for nominal, amber for low), plus an inline priority queue at the bottom showing urgent vehicles with a one-click ASSIGN button to dispatch resupply.

Low Status
Amber = running low but still operational. Act soon.
Critical Status
Pulsing red diamond = critical. Readable from any distance.
Fleet overview, eight vehicles on the tactical map. Nominal vehicles recede; amber and red surface work.
Fleet Summary
5 OK · 2 LOW · 1 CRIT at a glance.
Sidebar List
Critical surfaces first, same hierarchy as the map.

Who needs help first?

When three vehicles are low and you've got one resupply truck, you need priorities. The queue sorts them: most critical first, one click to dispatch. When a critical vehicle clears back to neutral, the supply officer sees it happen. For the first time, the loop actually closes.

Priority Sort
P1 at top, auto-sorted by severity, not arrival order.
Priority queue, critical vehicles first. Assign a truck, watch them drop off the list.
Batch Dispatch
All critical vehicles dispatched in one tap.
One-Click Dispatch
Assign truck without leaving the queue. Loop closes.
Per-Type Counts
OFL/OCC/OE shown per vehicle, not just "low".

A shared foundation, not a shared skin

We built 67 components around one rule: colour never carries meaning alone, and it only appears when it helps an operator distinguish material, verify a choice or resolve an exception. The same critical-ops foundation later informed PRAHARI, but Chargeur keeps a quieter, guided-workflow personality.

Critical Ops Foundation / ChargeurTruth before action
67 components · 4 state families
01 / StateText + shape + colour

OFL, OCC and OE are always named. Colour accelerates recognition; it never replaces the label.

02 / HierarchyCurrent truth dominates

Chambered type and match state outrank telemetry, history and secondary actions.

03 / ExceptionAmber asks. Red stops.

A mismatch names expected and actual values before presenting two explicit paths.

04 / TouchGlove-sized targets

Compact information density, generous action targets and no precision gestures in critical paths.

Before and after

Problem Before After
Mismatch detection No match verification. Amber light = "ready," regardless of type Explicit type-match confirmation. Mismatch triggers named alert with forced choice
Ammo count No count display. Crew estimates from memory Real-time count bars by type. Low-ammo threshold triggers amber warning
Gunner visibility Zero. Gunner fires without knowing ammo type Synchronized display. Gunner sees type + switch status in real-time
Fleet awareness Radio estimates logged in Excel spreadsheet Real-time tactical map with per-vehicle ammo state and one-click resupply
Type switch feedback No progress indication. Commander waits, hopes 4-second animated progress bar. Both commander and gunner see switch state

We recreated the Victor 4 scenario. 24 times.

0
Mismatch errors
↓ 41%
Faster type switches
67
Components built
2
Programs adopted the system

Six commanders, four sessions each. We deliberately loaded the wrong round every time. With the new panel, every single one of them caught it. Every one chose the right action, abort or override. Nobody fired on a mismatched round.

With the old panel? Four out of six missed it completely and pulled the trigger.

"For the first time, I feel like the interface is on my side. Not just telling me things, actually helping me." Commander, Victor 7, post-evaluation debrief

What we'd do differently

We designed screens before we understood the machine

Three weeks in, we were laying out UI zones without fully understanding how the autoloader actually worked, 30 slots, each with a type and a position, in a carousel that rotates. We were designing from layout intuition instead of from the data. Once we mapped the state machine properly, the screens basically designed themselves. Should've been day one work.

The engineering lead thought we were criticising his hardware

The engineering lead saw every new interface element as an implicit dig at the autoloader he'd spent years building. It took us weeks to find the right framing: "Your hardware is trustworthy enough that when it shows a mismatch, the crew should take it seriously." The mismatch alert became a vote of confidence, not a criticism. That conversation should have happened in week one.

The Colonel and the math

Col. Bergeron in procurement saw any new UI as new training cost. Fair enough. We had to prove that training six commanders on a new panel was cheaper than 22 incidents' worth of debriefs, remediation, and paperwork. The math worked. But getting that math together took four weeks we really didn't have.

Engineers don't move on design rationale. They move on incident reports.
